Modern electric installations at all places, factory, commercial building, power plant, data center, or EV charging station, are always in need of safe, reliable, and efficient power distribution. Busbar systems are critically engaged in this area.
Busbar systems are the main electrical highways deep inside switchgear panels, motor control centers (MCCs), and power distribution panels. They ensure that electrical power moves without any disturbance, in a safe manner, and with minimal losses from the incoming supply to various outgoing circuits.
Busbar systems have surpassed traditional cable-based wiring in terms of performance, compact design, current capacity, and lifetime, which is the reason why they are the preferred option in the modern electrical engineering field.
Busbar is a thick piece of metal, which is generally copper or aluminum, that takes and shares the electrical power throughout an electrical panel or enclosure.
A complete busbar system has:
• Copper or aluminum busbars
• Insulation or sleeves
• Support insulators
• Joints, bends, and connectors
Compared to cables, busbars are inflexible, accurately engineered, and made to order based on current rating, short-circuit level, and panel layout.

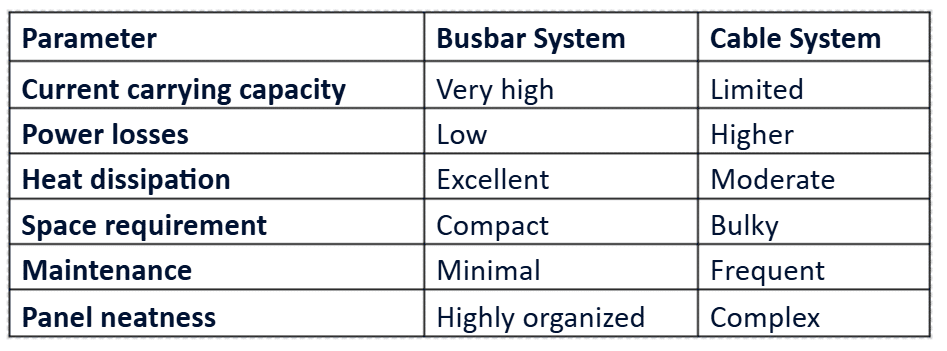

Here is a simple comparison:
Because of these advantages, busbars are now standard in switchgear, MCC panels, PCC panels, and EV charger panels.
Switchgear is an electrical assembly that consists of circuit breakers, isolators, protection relays, and meters. It is used to control, protect, and isolate electrical equipment.
How Busbars Function Inside Switchgear
In switchgear, busbars:
• Receive power from the main incomer
• Distribute it to multiple outgoing feeders
• Withstand high fault currents
• Maintain phase separation and safety clearances
Busbars play a crucial role for the power distribution, which is necessary for industrial safety.
Key Benefits in Switchgear Applications
• High short-circuit withstand capacity
• Reduced voltage drop
• Better thermal management
• Long operational life
• Compliance with IEC and IS standards
This is the reason why fabricated busbars for switchgear are extensively used in industrial and utility panels.
A Motor Control Center (MCC) is a system that is centralized and that is employed to control and protect the several electric motors. Usually, MCCs are installed in:
• Production plants
• Water treatment facilities
• Chemical plants
• HVAC systems
Busbars in MCC Panels: Their Role and Importance
Electric motors have a very high current demand at start-up and they also work non-stop. The busbar arrangement in the MCC provides:
• Equal power distribution to all motor feeders
• Small size of the panel
• Lower temperature rise
• Easier future expansion
Busbar Configurations in MCCs
• Horizontal main busbars
• Vertical distribution busbars
• Neutral and ground busbars
• MCB comb copper busbars for motor feeders
Busbar systems are an integral part of panel electrical systems. They are used in almost all electrical panels, such as:
• PCC panels
• MCC panels
• APFC panels
• Distribution boards
• EV charger panels
Advantages for Panel Manufacturers and Users
• Installation time is greatly reduced.
• The panel layout is now clean and organized.
• Loose connections are very unlikely to happen.
• Panel aesthetics are boosted.
• Lowered Maintenance cost.
Copper busbar manufacturers in Delhi/ NCR and other industrial centers are therefore very much focused on developing and supplying panel-ready fabricated busbar solutions.
The chief attributes of copper busbars very much explained the reason for their most favored status:
• Outstanding electrical conductivity
• High-temperature rating
• Very good tensile strength
The major applications are:
• Busbars in switchgear
• Busbars in motor control centers (MCC)
• Electric vehicle (EV) charger busbar systems
Aluminum Busbars
Aluminum busbars are the best choice when:
• The cost is a main consideration
• A reduction in weight is sought
Their safety and performance are enhanced with sleeved aluminum busbars which are used extensively in India.
Among the advantages provided by tinned copper busbars are:
• Protection against rust
• Extended joint life
• Consistent contact resistance
They are best suited to moist and tough industrial environments.
For safety reasons and compact panel design, insulation is a very important factor.
The most used insulation methods are:
• Heat-shrink sleeves
• Epoxy powder coating
• PVC or polyester insulation
Aluminum busbars with sleeve manufacturers present insulated solutions that minimize phase-to-phase faults and enhance operator safety.
Fabricated busbars are tailor-made considering:
• Dimensions of the panel
• Amount of current
• Short-circuit potential
• Installation surroundings
These busbars are processed to the specifications in the drawings of bending, drilling, plating, and insulation, which makes them suitable for medium-voltage breaker and motor starter assemblies.
1. Current Rating and Temperature Rise
The size of the busbar is determined by the following factors:
• The continuous current load
• Ambient temperature
• The ventilation of the enclosure
2. Short-Circuit Withstand Capability
Busbars have to withstand:
• Thermal stress
• Mechanical forces during faults
3. Electrical Clearances
Sufficient phase separation and insulation avoid:
• Flashover
• Accidental contact
4. Joint Design and Plating
• Joint reliability is enhanced by tin or silver plating
• Proper torque guarantees long-term performance
Busbar systems of high quality are:
• IEC 61439
• IS 8623
• IEC 60890
• IEC 60947
Safety, reliability, and world-wide acceptance are assured through compliance.
• Less energy loss
• More efficient system operation
• Smaller panel design
• Quicker installation
• Less interruption time
• Longer life span
There is an extensive use of busbar systems in:
• Industrial switchgear and MCC (Motor Control Center) panels
• Data centers
• Renewable energy plants
• EV (Electric Vehicles) charging infrastructure
• Commercial buildings
• Utility substations
In India, there is a very rapid development of:
• Electric vehicles (EV) charging infrastructure
• Battery energy storage facilities
• Smart manufacturing
• Renewable energy projects
Consequently, there is a growing demand for:
• Manufacturers of busbars for EV chargers
• Manufacturers of copper busbars for plating
• Suppliers of tinned copper busbars in India
• Manufacturers of aluminum busbars in Delhi
• Laminated busbar systems
• Compact designs for high current
• Smart panels with temperature monitoring
• Custom busbars for EV and battery
• Use of advanced insulation materials
What is the purpose of a busbar in switchgear?
In switchgear a busbar does the distribution of electrical power among the different circuits of the switchgear coming in and going out, in a safe and efficient manner.
Are busbars safer than cables?
Yes, with proper design, the heat dissipation of busbars that are well designed, their mechanical strength, and the fact that there are no or fewer joints make them safer than cables.
Which busbar material is best?
Copper is the material of choice for high-performance applications, while aluminum is the material of preference for low-cost solutions.
Where are busbar systems used?
Busbar systems are present in-switchgear, MCC panels, electrical panels, EV chargers, data centers, and industrial plants.
Busbar systems are no more optional—instead they have become vital parts in the modern electric distribution. Their capacity to carry huge currents, to offer safety, to reduce losses, and to enable compact panel designs all together make them the most desirable selection for switchgear, MCCs, and electric panels.
As industries shift to electrification, EV uptake, and smart power systems, the importance of well-designed bus-bar systems will only grow and they will continue to be the backbone of efficient and reliable power distribution.
The quality of the busbar system is the one that really dictates the overall performance, safety, and lifetime of the installation of reliable switchgear, MCCs, and electrical panels. A well-conceived busbar does not only perform the function of current conduction but also ensures the thermal stability of the system, energy losses are reduced, and maintenance becomes easier while future expansion is allowed without extensive redesign. On the opposite side, busbars that are poorly designed or small in size can cause overheating, frequent faults, and downtime, which are costly in terms of safety risks in the long run.
The same reason makes it necessary to forge relations with skilled busbar manufacturers like Adinath Enterprises. Everything is very important and every little detail counts, starting from the exact material choice and very precise manufacturing to the right insulation, plating, and compliance with IEC and IS standards. Panel builders, EPC contractors, and industrial users are getting more and more attracted to custom, ready-to-use busbar solutions that not only cut down installation time but also get rid of on-site mistakes.
Busbar systems will be the most efficient and future-proof way of power distribution even when electrical systems become more extensive and more complex, especially in the case of EV charging, renewable integration and smart panels. The right busbar design investment today does not only secure trouble-free operation now but also scalability, safety and reliability for many years.
