Introduction: The Unseen Inefficiency of Today’s Electrical Systems
As electrical systems get increasingly advanced, including areas such as electric vehicles (EVs), renewable energy, and industrial automation, the demand for energy efficiency, compact size, and long-term reliability has never been greater before. Therefore, there are many things that need to be considered in the design of an electrical system to achieve these goals however, one important part is often overlooked in the design phase is the busbars.
Most systems use standard catalog busbars, believing they will do the job adequately. But in reality, the use of standard catalog busbars creates hidden inefficiencies that typically only become noticeable after excessive heating, voltage drop, or system failure has occurred.
Busbars that do not fit properly will create the following:
High electrical resistance and waste of energy
High levels of heat build-up due to improper sizing
Space limitations for compact systems like EV battery packs
A more complex installation, creating higher labor and maintenance costs
This is why using customized busbars can be of great value.
When busbars are designed specifically for your application, the result is an improvement in conductivity, a better-performing electrical system, better system optimization, previously unattainable levels of safety, and long-term cost savings.
What is a busbar?
What Is a Custom Busbar?
How Custom Busbars Improve System Performance
Important design parameters of a custom busbar
Real-World Applications of Custom Busbars

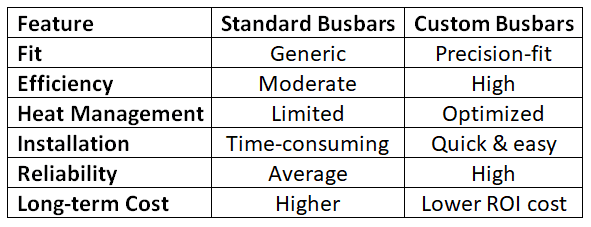

Custom Busbars vs. Standard Busbars
Expert Design Tips for Improved Performance
Common Pitfalls that Impair Busbar Performance
How to Select an Appropriate Busbar Manufacturer
What Are the Benefits of a Custom-Made Busbar?
FAQs
Conclusion
Busbars are metal strips of copper or aluminum, usually, that carry large amounts of electricity, or high levels of current, with minimal resistance. They function as a central point for connecting and distributing electricity throughout multiple circuits, eliminating the need for complex wiring systems.
Examples of the key functions of busbars include:
Effectively and efficiently providing large quantities of electric current with very low resistance
Distributing electric power to many circuits or electrical components
Reducing the number of wires used in an electrical design and simplifying the overall electrical system
Increasing reliability by having fewer connection points
As such, busbars are now considered essential components for modern-day electrical systems and have a significant impact upon the performance of the complete electrical system as well as the efficiency and long-term performance of the electrical distribution system.
Custom busbars refer to bending, cutting, welding, etc., of busbars to create the part that fits perfectly with your application, this involves developing and designing the busbar based on the electrical/mechanical requirements of your system using existing stock busbars with predetermined shapes.
Physical size (length, width, and thickness) that you need.
Complicated bends, curves, and shapes so that they will fit into tight spaces.
Exact amount of current-carrying ability required for your application.
Locations and types of holes and mounting recommendations for your busbar.
Surface finish (tin, silver, etc.) that you require on your busbar.
Insulation coatings for safety and durability.
The benefit to you of custom busbars is that you can configure your system to utilize the best-performing busbar by using a custom busbar designed specifically for your needs.
A key advantage of custom busbars is that they will reduce the electrical resistance that is seen with factory-made busbars. Many factory-made busbars are designed and manufactured to common or average dimensions and cross sections. These can greatly affect the performance of your system.
Custom busbars can be engineered based on:
Optimized cross section.
Ideal conductor length.
Properly distributed current-carrying path.
As a result, a custom busbar enables you to experience the following:
Lower resistance.
Less voltage drop.
Greater overall energy efficiency.
The generation of heat is part of the operation of all electrical components, but poor designs can make the heat even worse. Custom-designed busbars will allow an engineer to consider thermal factors throughout the design process such as spacing, airflow, and material properties.
Properly designed custom busbars will give you the following:
Optimized geometry that maximizes heat dissipation
Reduction in hot spots that can damage components
Longer usable life for the entire system.
As the use of EVs and data centers grows, the demand for small and efficient systems has increased. Most standard busbars create wasted space and require compromises when designing systems.
The use of custom-designed busbars will give you:
A fit for the busbar in confined spaces
Reduction in excessive bulk
Cleaner and more organized layouts
The space optimization is extremely important in battery packs and high-density panels, as each millimeter will have a significant impact on overall performance.
The most common causes of mechanical failure in electrical systems are misalignment, loose connections, and mechanical stress of the components.
With the use of custom-made busbars, many of these failure modes can be either eliminated or greatly reduced by:
Providing the proper size of busbar that is securely fastened.
Reducing failures from vibration.
Reducing the number of connections in the entire installation.
By using a custom busbar in an electrical installation, the end result is usually a more reliable, safer, and higher-performance electrical system.
Installing pre-engineered busbars is much easier than wiring and adjusting the components. Rather than having to make many different wiring connections, a technician can install the specific busbar component directly to the bus.
Benefits will include:
Faster installation times
Lower labor costs
Minimization of rework in assembly
Easier to maintain and replace
The important design parameters for a custom busbar include the following:
Choosing a material is an important decision:
Copper Busbars – More conductive
Best performer for high-load applications
More robust and cost a little more
Aluminum Busbars – Lightweight and low cost
Appropriate for medium-load applications
Requires a larger-sized busbar than copper to provide the same conductivity
A busbar is capable of supporting an electrical load without overheating. The following factors will determine the possible current level that the busbar(s) can handle:
Cross-sectional Area
Ambient Air Temperature – For Free-Standing Busbars
Adequate Cooling for Free-Standing Busbars
Duty cycle (continuous vs intermittent load).
Surface-plated ‘finish’ offers improved life and performance of the component used in your application. The two major types of surface plating available are the following:
Tin Plated for Corrosion Resistance and Improved Solderability.
Silver-Plated Provides the Highest Electrical Conductivity for Applications That Need to Have ‘Ultimate’ Performance
Nickel Plating Provides Added Mechanical Strength and Provides Added ‘Wear’ Resistance to the Component.
Insulation is critical for both safety and performance.
For insulation and protection, the following options are possible:
Heat-shrinkable sleeves
Powder-coat finish
Epoxy Insulation
A small mistake in design can create a large problem. Commonly critical considerations include:
Hole alignment accuracy
Edge finishing (to prevent electrical discharge)
Bending quality
Mounting compatibility
Custom busbars are used extensively in electric vehicle battery packs, inverters for electric vehicles, and infrastructure for charging electric vehicles. Custom busbars help to distribute and connect high levels of current but also provide compact designs with good thermal efficiency.
Busbars build custom industrial places, providing power and also increasing repairs for the work by saving downtime.
Alternative energy depends on accurate and quick movement of electrical energy. Common busbars can be used to increase durability and reduce loss.
Data centers need a high density of supply with a low amount of space, custom busbars allow the same level of electrical performance without causing temperature issues.
Design based on empirically developed load conditions.
Ensure proper spacing in the busbars for improved airflow and adequate cooling.
Round the edges of the bars in order to reduce electrical stress/corona discharges.
Consider environmental conditions for choosing plating materials.
Work with manufacturers who assist with design, fabrication, etc.
Thermal expansion/contraction ignored.
Improper material selection for the application area.
Holes/mounting points are not properly aligned.
Lack of insulation planning.
System not sized for future growth.
Finding a qualified partner for busbar design is as important as ensuring that the busbars themselves will perform properly.
Everything you need to find includes:
High-quality engineering/design skills
Modern technology processes like CNC and laser
Flexibility in design
Experience working with energy vehicles and industry
Quality assurance and reliable testing.
When busbars are custom-made, the overall system performance will improve through the following:
Lower resistance through the busbars.
Better ability of the busbars to dissipate heat.
More effective usage of available space for housing the busbars.
Ease of installation.
Increase in the operational life of the system.
1. What is a custom busbar?
A custom busbar is the custom-designed manufacturing process used to create a custom busbar for a particular system that will enhance the system’s efficiency, proper fit, and performance.
2. What Makes Custom Busbar Allow for Increased Efficiency?
Custom busbars are created to have low electrical resistance, high thermal efficiency, and to eliminate other design inefficiencies with the busbar.
3. Where Are Custom Busbars Typically Used?
Typical uses of custom busbars include electric vehicles (EV), manufacturing processes, industrial electrical panels, locally renewable energy solutions, and data centers.
4. Is Copper or Aluminum the Better Metal to Manufacture Busbars?
Copper has greater conductivity than aluminum; however, aluminum is much lighter than copper and is generally considered a more cost-effective option for busbars than copper.
5. Will a custom busbar reduce installation time?
Yes, custom busbars are much easier to install because they do not require complicated and often time-consuming wiring and/or adjustments.
6. Can busbars have insulation?
Yes. There are many benefits to insulating busbars, including safety and protecting busbars from the elements.
The New Reality of Customization
In business, efficiency, performance, and reliability are critical measurements of success; therefore, it is no longer acceptable to rely purely on standard components.
The benefits of a custom busbar are numerous:
Improved efficiency
Improved thermal performance
Improved reliability
Long-term cost savings
Therefore, custom busbars should not be considered as just an enhancement; instead, they represent a strategic investment into system performance.
